Daraty Breadboard

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

Daraty Breadboard is an educational toolkit designed to teach children the principles of electronics. Similar to standard engineering tools, Daraty introduces a simplified physical tool that enables children to build their own projects and electronics circuits through discovering and tinkering.



Register Your Interest



Description

Daraty Breadboard is an educational toolkit designed to teach children the principles of electronics. Similar to standard engineering tools, Daraty introduces a simplified physical tool that enables children to build their own projects and electronics circuits through discovering and tinkering.

The Daraty Breadboard kit contains 18 electronic elements, a connection board, and an experiments guide. The guide includes suggestions and tutorials for about 10 projects using the provided elements.

This tool is suitable for children at 8 to 12 years old without the need for previous knowledge about electronics. In addition to providing children with information about computers and circuits, Daraty also improves their logical thinking and problem-solving skills, while preparing them to be the future technology inventors.

Technical Specifications

• Materials

• Board Material: Plastic (Acrylic)

• Components Material: 3D printed ABS & PLA, with magnets attached

• Dimensions

• Board Dimensions: 36 x 24 x 4 cm

• Components Box Dimensions: 19 x 15 x 4 cm

• Kit Box Dimensions: 25.5 x 38.5 x 11 cm

• Packaging

• Package Dimensions: 39 x 28 x 15 cm

• Package Weight: 2.3Kg, and 2.8Kg for shipping package

• Power

• Output Voltage: 5V, up to 2.1A

• Input Voltage: 5V, USB Micro-B plug

• Charger Voltage: 5V, 2A with status LED

• Battery

• Capacity: Non-removal, two Li-Ion 3.7V 2200mA

• Run-time: Related to the usage of kit, normally 5 hours up to 8 hours.

• Charging Time: 1-2 hours

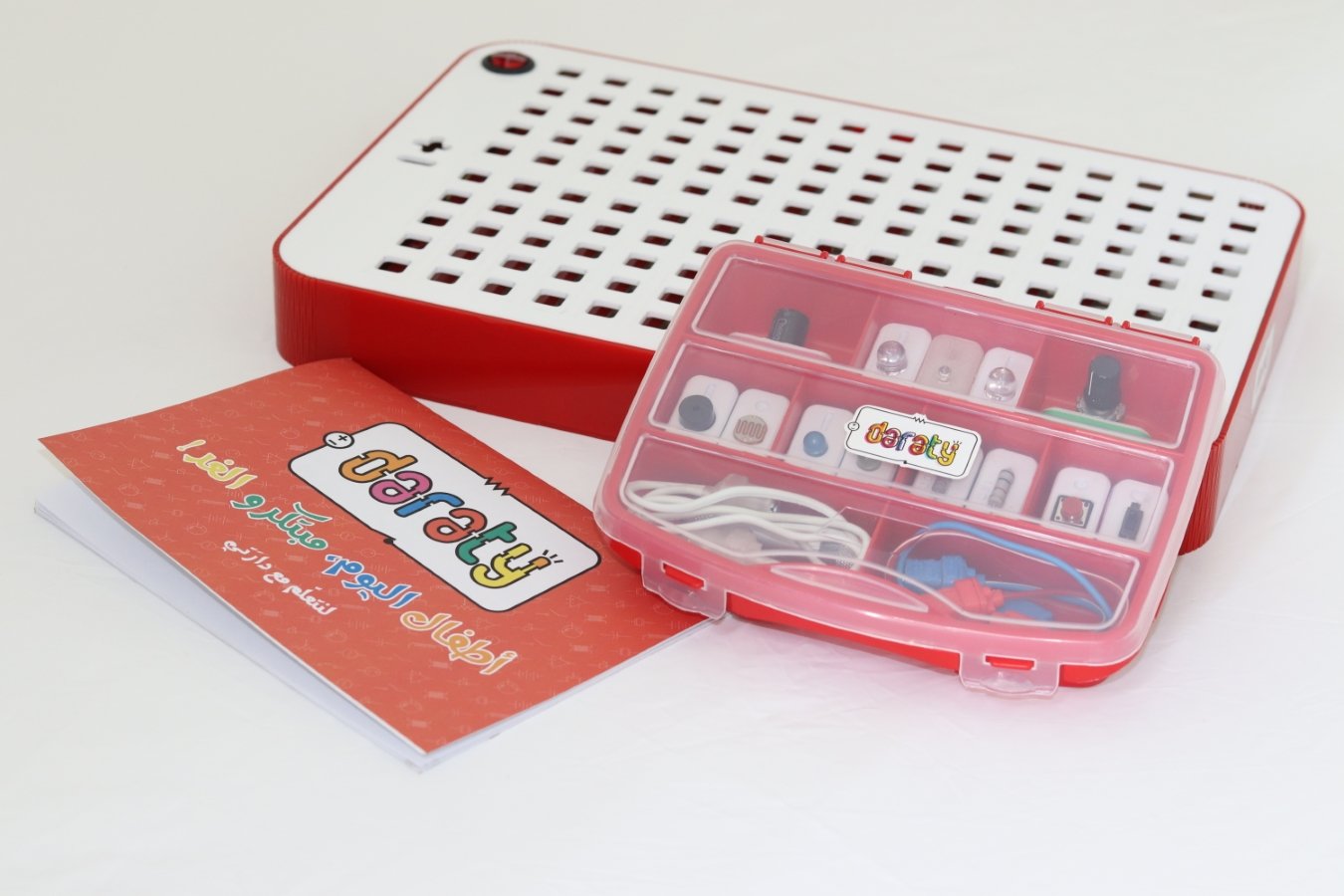

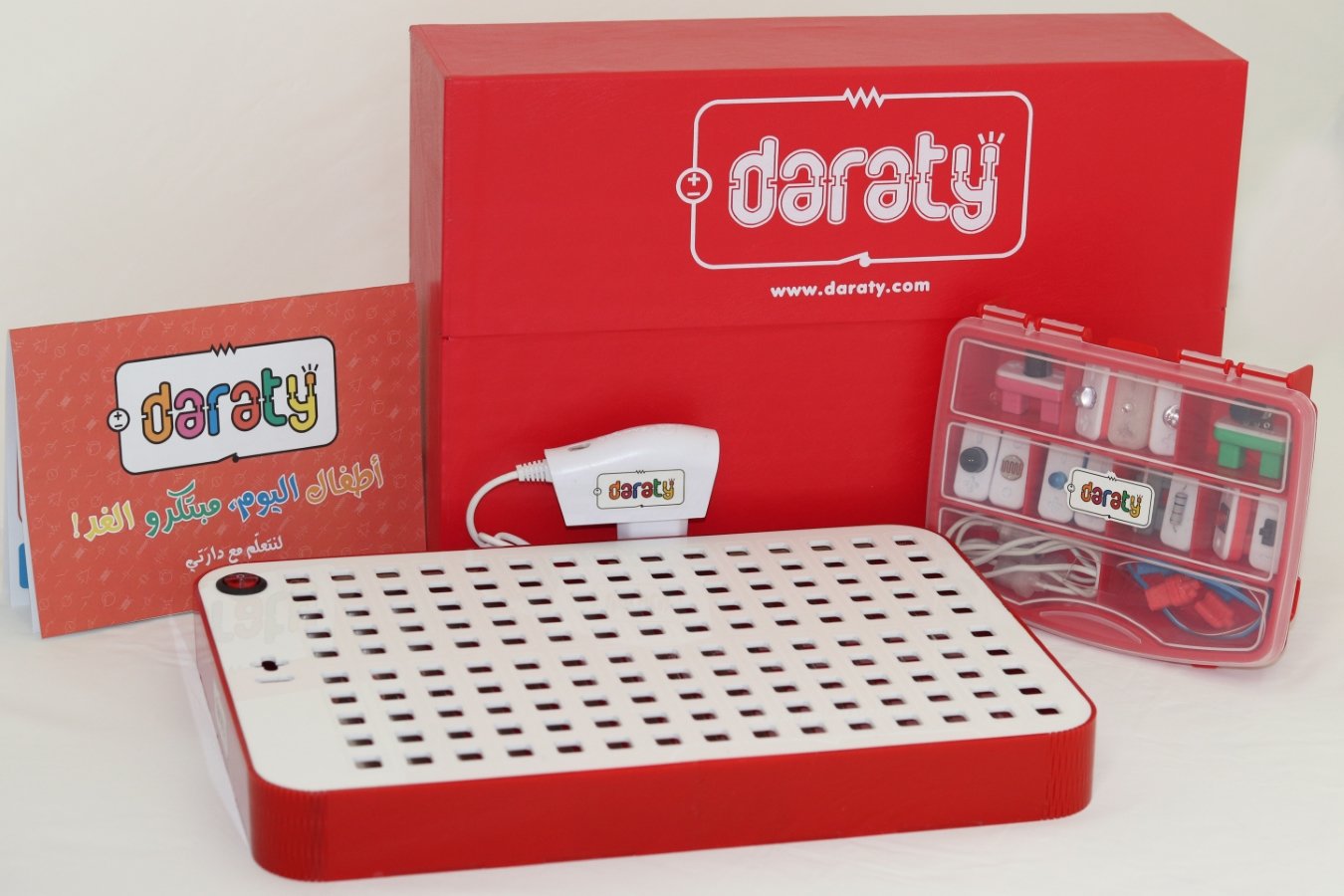

What's inside?

  • Breadboard
  • Elements Box
  • Experiments booklet
  • Daraty Charger

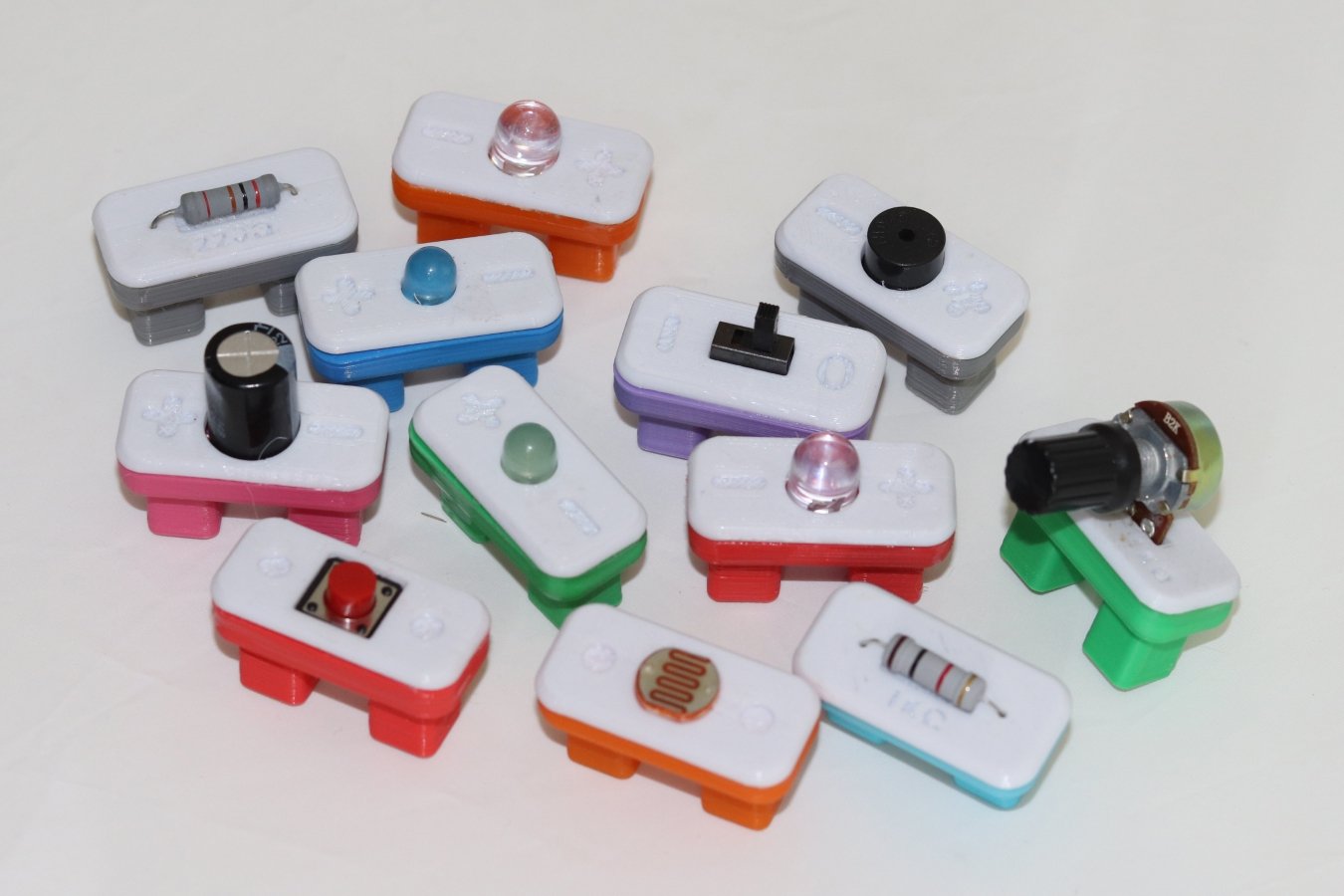

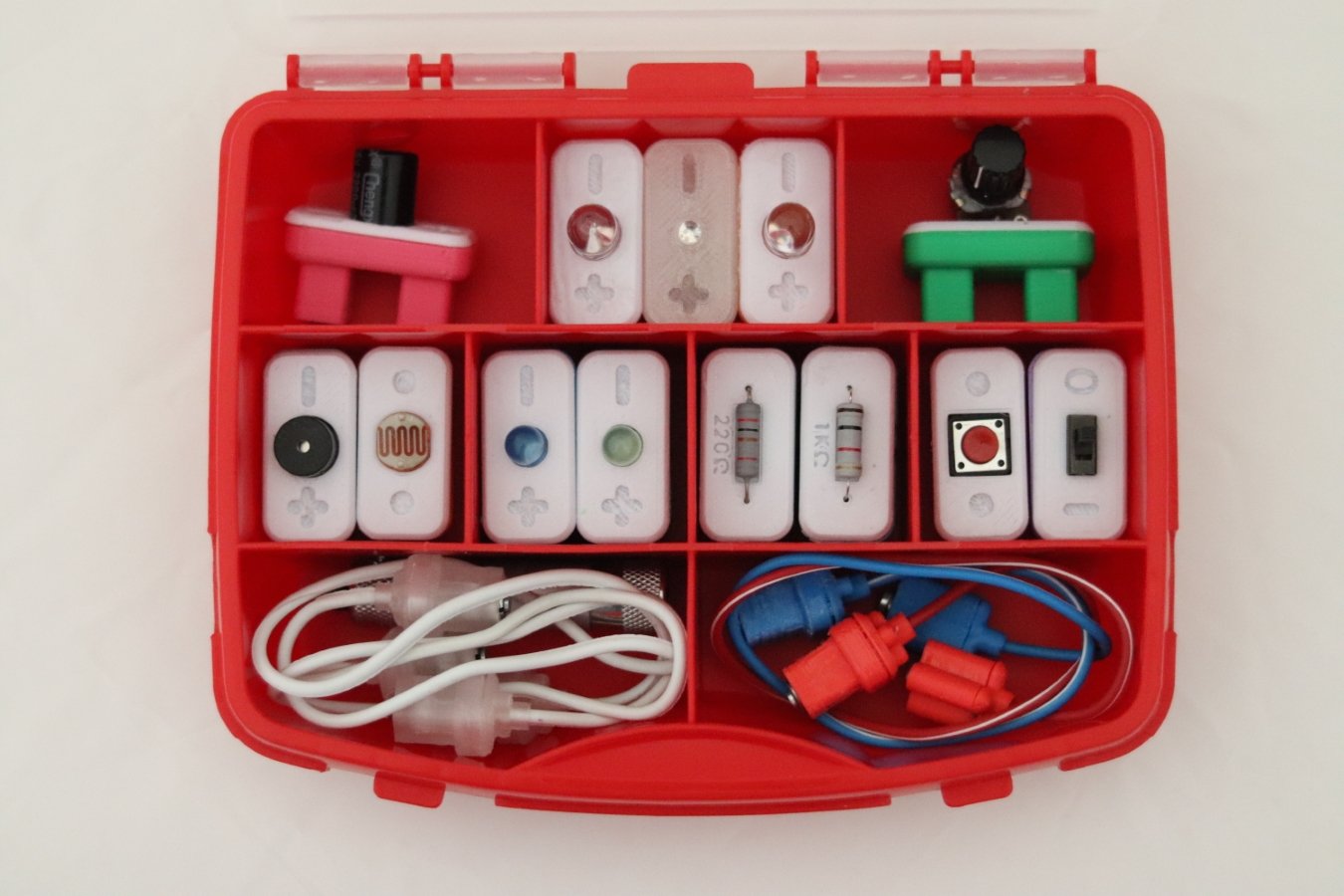

Elements box includes:
  • Red LED
  • Orang LED
  • Blue LED
  • Green LED
  • RGB LED
  • 220Ω Resistor
  • 1KΩ Resistor
  • 2kΩ Potentiometer
  • Piezo Buzzer
  • 2200µF Capacitor
  • Push Button
  • Switch
  • Light Sensor (LDR)
  • Mini LED Torch
  • Pair of Power Wires
  • Pair of Extra Wires
